Building an AI Analysis Agent in Hours - A No-Code Approach with Lovable and N8N

I woke up at 2 AM with a familiar knot in my stomach. Another Analysis of Alternatives report was due, and I’d already burned five hours on it. Researching competitors, pulling feature grids, cross-referencing pricing tiers, hunting down citations — it’s the kind of grinding, necessary work that eats an entire day and leaves nothing for actual strategy.

At my consulting rate, each report effectively cost thousands of dollars in time.

So I did what any exhausted person does at 2 AM: I asked whether an AI could handle the research and compilation while I focused on the part that actually required a human — judgment.

Turns out it can. I built an agent that writes AOA reports in minutes. Here’s how I did it, and how you can too, without writing complex code.

The agent, in two modes

⚠️ Note: This project has been deprecated. The demo is no longer available, but the architecture concepts below still apply. Watch tutorial →

The agent researches any topic, writes a full report with citations, evaluates its own output, and iterates until the quality meets a bar I set. It has two modes:

• Pro Mode: 2–4 minute reports with 5 citations. Good for quick comparisons when a client needs a directional answer today.
• Deep Research Mode: 10+ minute reports with 15–30 citations. For when the analysis has to hold up under scrutiny.

Here’s the part that surprised me: I built the whole system in hours, not months, using visual tools. No React. No backend framework. Just two services talking to each other.

The stack — two tools, wired together

Lovable is an AI assistant that turns chat prompts into working interfaces. You describe what you want; it generates a React frontend. You don’t need to know React — it helped that I did, but Lovable handles the heavy lifting. There’s a free tier.

N8N is visual workflow automation. Think of it as Zapier’s more capable cousin, except you self-host it (I run mine on a VPS — a virtual private server, basically a cheap cloud computer). It connects to any API — an application programming interface, the way two services talk to each other — without writing code. Drag boxes, draw lines between them, done.

The two tools communicate through a webhook — an automated HTTP callback that fires when the frontend submits a search. Lovable creates the interface. N8N runs the AI pipeline behind the scenes.

graph LR
    User[User] --> UI[Lovable UI]
    UI -->|Webhook| N8N[N8N Workflow]
    N8N --> Perplexity[Perplexity AI]
    N8N --> Claude[Claude Writer]
    Claude --> Evaluator[Quality Check]
    Evaluator -->|Retry if needed| Claude
    Evaluator -->|Success| UI

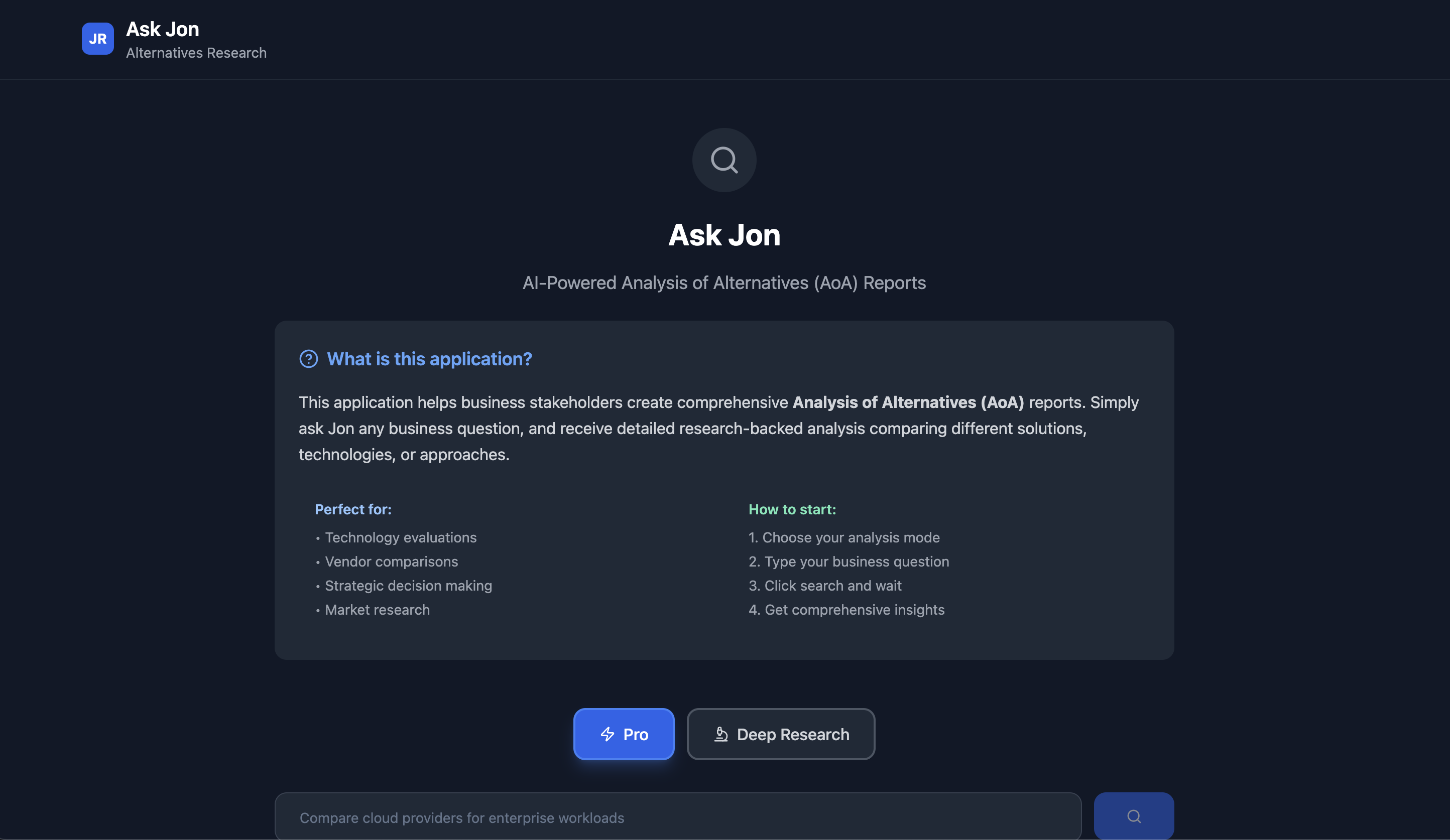

Part 1: The UI — 30 seconds to a working interface

I opened Lovable and typed a single prompt:

Create a search interface with two modes:
- Pro mode (2-4 minutes)
- Deep Research mode (10+ minutes)
Include a text input for the search query and a search button.

Lovable spat out a clean React interface immediately. But the real trick was connecting it to something that actually does work.

Here’s the code Lovable generated to wire the frontend to the N8N backend:

// Lovable generated this for me
const handleSearch = async () => {
  const response = await fetch('https://your-n8n-webhook-url/aoa', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify({
      task: searchQuery,
      mode: searchMode
    })
  });

  const data = await response.json();
  setReport(data.report);
};

One more prompt — “Make this look professional with a modern gradient background and smooth animations when the report loads” — and I had an interface that looked like it took a week to build.

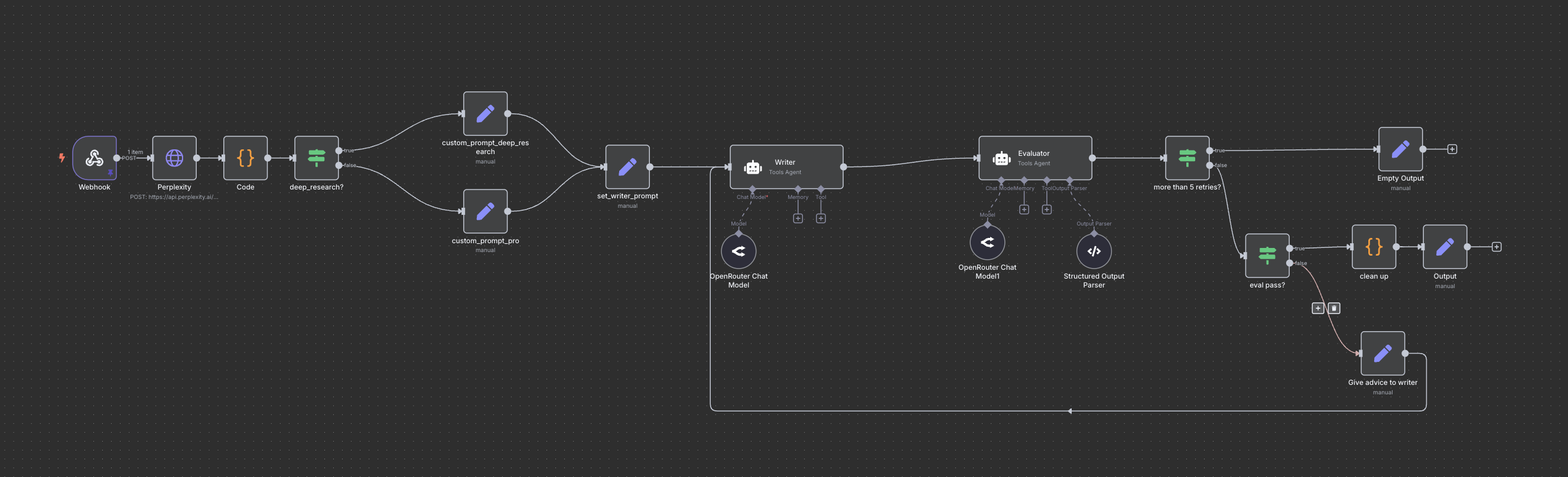

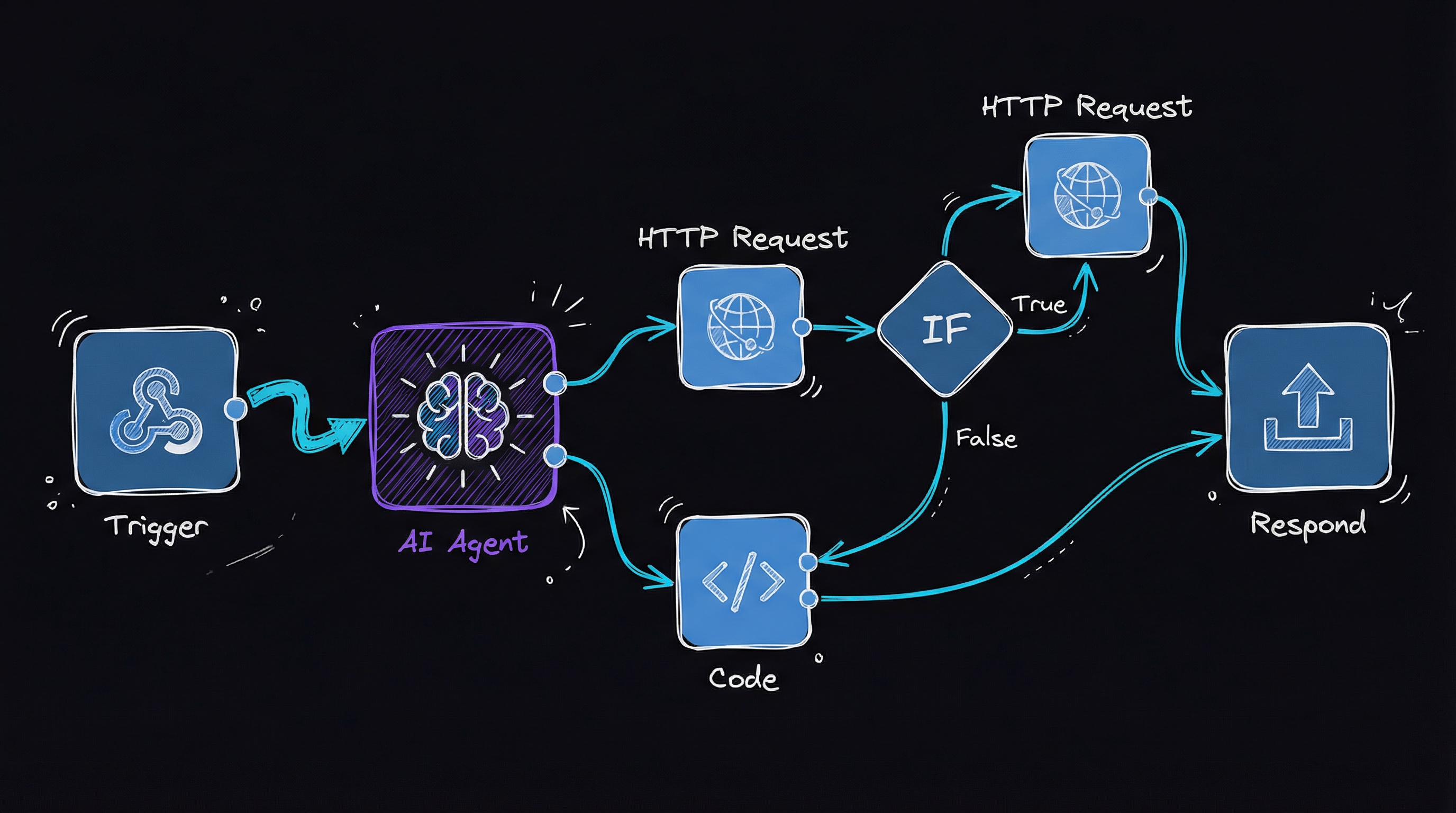

Part 2: The brain — N8N’s visual workflow

N8N is where the agent gets its intelligence. You drag nodes onto a canvas and connect them. Each node does one thing: receive a webhook, branch on a condition, call an AI API, evaluate output, loop back.

Here’s the flow for each request:

1. Webhook Trigger — receives the search query from the Lovable frontend
2. Mode Branch — routes to different instructions depending on Pro or Deep mode
3. Perplexity Research — fires off a web search with Perplexity AI (a real-time research engine that returns cited results), and gets back sourced content
4. Report Writing — Claude (Anthropic’s large language model) takes the research and crafts the analysis
5. Quality Evaluation — a second Claude call checks whether the report meets the standards I defined
6. Retry Logic — if it fails the quality check, the feedback gets injected back into the writer’s instructions and it tries again

The research phase

The Perplexity integration is straightforward. In the N8N Perplexity node, I drop in:

// N8N expression in the Perplexity node
{
  "model": "sonar",
  "messages": [{
    "role": "user",
    "content": `Write a thorough report on: ${json.body.task}`
  }]
}

Prompt structure matters

For Deep Research mode, I give the model detailed instructions wrapped in XML tags — a technique Anthropic recommends in their prompt engineering docs. The tags act as high-visibility delimiters that the model treats as structured input rather than ambient context:

<instructions>
Write an Analysis of Alternatives report with:
- Length: 4000-5000 words
- Citations: 15-30 sources
- Sections: Executive Summary, Evaluation Criteria,
  Detailed Analysis, Recommendations
</instructions>

<example>
[One-shot example of a high-quality report]
</example>

You are a strict editor. Reply ONLY with JSON: {"passes": true|false, "issues": ["..."]}
Criteria: has an Executive Summary section, cites at least 5 sources, exceeds 500 words.

<draft>
{{paste output here}}
</draft>

Part 3: The quality loop — the part most people skip

Here’s what makes the agent actually useful: it doesn’t just dump text and call it done. It critiques its own output and improves it.

The first draft is rarely good enough. I learned this the hard way — my early prompts produced reports that looked complete but missed entire sections or cited four sources when I’d asked for fifteen. The fix was separating the writer from the judge.

After the writer node produces a draft, N8N sends it to a second Claude call whose only job is to check boxes and return a verdict:

// Simplified evaluation logic
const evaluationCriteria = {
  hasExecutiveSummary: true,
  citationCount: mode === 'deep' ? 15 : 5,
  wordCount: mode === 'deep' ? 4000 : 1000,
  sectionsComplete: true
};

if (!meetsAllCriteria) {
  // Retry with specific feedback
  return retryWithFeedback(evaluation.rationale);
}

When the report fails, the agent doesn’t just try again blindly. It captures exactly what was wrong — “missing the Recommendations section, only 3 citations found” — and feeds that back to the writer: “Your previous attempt failed because the Recommendations section was missing. Here is your draft so far. Add the missing section and ensure at least 15 citations.”

It caps retries at 5 to prevent an infinite loop burning API credits. Most reports pass on the first or second retry.

The money-saving trick

During development I ran the workflow maybe a hundred times. Each run called Perplexity and Claude, and those API calls add up fast. Here’s what saved me hundreds of dollars:

// Pin successful outputs during testing
if (testMode) {
  saveOutput(perplexityResult);
  return pinnedOutput; // Skip API call
}

I pinned the Perplexity research output after the first successful run for a given topic. While iterating on the writer prompt and evaluator criteria, I reused the same research data instead of paying for fresh searches every time.

Deploy your own in 5 minutes

Requirements

• Lovable account (free tier works)
• N8N instance (cloud or self-hosted)
• Perplexity API key ($5 gets you started)
• OpenRouter account (an API gateway that gives you access to Claude and other models without managing separate billing for each)

Steps

1. Clone the Lovable template:

   • Start a new Lovable project
   • Copy the UI code from my examples
   • Update the webhook URL to point at your N8N instance

2. Import the N8N workflow:

   • To request the N8N workflow template, email [email protected]
   • Import into your N8N instance
   • Add your API keys

3. Configure the connection:

   // In Lovable, update this line:
   const WEBHOOK_URL = 'https://your-n8n-domain.com/webhook/aoa';

4. Test with a simple query:

   • Try: “Compare the best CRM tools for small businesses”
   • You should see results in 2–4 minutes

5. Customize for your needs:

   • Adjust the prompt templates
   • Modify evaluation criteria
   • Add your own examples

Adapt it to your domain

Legal/Compliance Reports: Add regulatory citation requirements, risk assessment sections, and specific formatting standards.

Technical Comparisons: Emphasize performance metrics, add code examples, include architecture diagrams.

Business Analysis: Focus on ROI calculations, market size data, and competitor pricing.

Where this goes next

This agent is a starting point. A few directions I’m considering:

• Multi-language support — translate reports automatically
• PDF generation — export polished documents instead of raw text
• Team collaboration — shared editing and annotation
• Historical tracking — compare analyses across time periods
• Custom templates — industry-specific formats that clients expect

Community and resources

• Lovable Discord: UI help and sharing what you’ve built
• N8N Community: Workflows and troubleshooting
• My GitHub: Full source code

Going deeper

• Loom Video Tutorial: Watch me build this step by step
• Perplexity API Docs: Advanced search features
• Prompt Engineering Guide: Write better AI instructions

Your turn

The pattern repeats no matter what you’re building: market research, technical docs, competitive analysis.

1. Design a simple UI with Lovable
2. Build the logic flow in N8N
3. Connect to AI services through OpenRouter
4. Iterate based on what the evaluator catches

Stop blocking out entire days for repetitive analysis. Build an agent that works while you do something else.

Ready to build your own? Follow the guide above, or email [email protected] to request the N8N workflow template.

Have questions or want to share what you built? Find me on LinkedIn or visit my website. I’d love to see your AI agents in action!
